*标准：
•ISO/IEC 11801
•ANSI/TIA-568-C.2 Category 6A
•RoHS/CE compliant
产品特性：
•性能种类：超六类

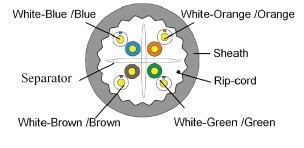

•双绞线对数= 4
•导体直径 (AWG) = 23
•导体：裸铜
•长度= 305米

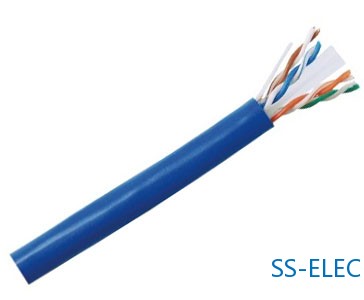

•护套颜色= 蓝色
· 工作温度：°C [°F]) = -20 – +75 [-4 – +167]
包装：木盘
应用范围：
• 10/100/1000Base-T
• 100Base-VG
• 155 Mbps and 622-Mpbs ATM
|
Category 6a UTP 4-Pair Cable Performance Parameters: |
|||||||
|
FREQUENCY |
RL |
ATTEN |
NEXT |
PSNEXT |
ELFEXT |
PSELFEXT |
DELAY |
|
(MHZ) |
(DB) |
(DB/100M) |
(DB/100M) |
(MHZ) |
(DB/100M) |
(DB/100M) |
(NS/100M) |
|
1 |
20 |
3.31 |
65.1 |
62.5 |
64.3 |
71.7 |
562 |
|
4 |
23 |
4 |
57.2 |
52.7 |
53.1 |
68.2 |
557 |
|
8 |
23.7 |
5.2 |
53.1 |
49.5 |
47.8 |
67.2 |
550 |
|
10 |
24.5 |
5.5 |
52.3 |
49.1 |
45.9 |
67.1 |
552 |
|
16 |
25 |
7.33 |
50.9 |
47.3 |
44.2 |
65.2 |
549 |
|
20 |
25 |
8 |
48.2 |
44.9 |
29.8 |
57.3 |
542.3 |
|
25 |
24.3 |
9.5 |
46.3 |
42.7 |
38.6 |
54.1 |
540.7 |
|
31.3 |
23.6 |
10.7 |
44.1 |
42.1 |
36.4 |
51.9 |
539.1 |
|
62.5 |
21.5 |
16.21 |
42.9 |
38.7 |
35.1 |
48.9 |
537.9 |
|
100 |
20.1 |
18.97 |
39.3 |
37.9 |
29.5 |
45.3 |
537.8 |
|
200 |
18.8 |
29.32 |
36.5 |
32.8 |
26.2 |
41 |
536.2 |
|
250 |
18 |
43.7 |
33.1 |
30.1 |
24.3 |
37.2 |
536 |
|
300 |
16.2 |
41.2 |
31.3 |
29.9 |
23.9 |
35.6 |
535 |
|
400 |
15.4 |
38.3 |
30.9 |
29.8 |
22.1 |
34.7 |
536 |
|
500 |
14.7 |
33.7 |
29.8 |
28.9 |
20.9 |
33.2 |
535 |
