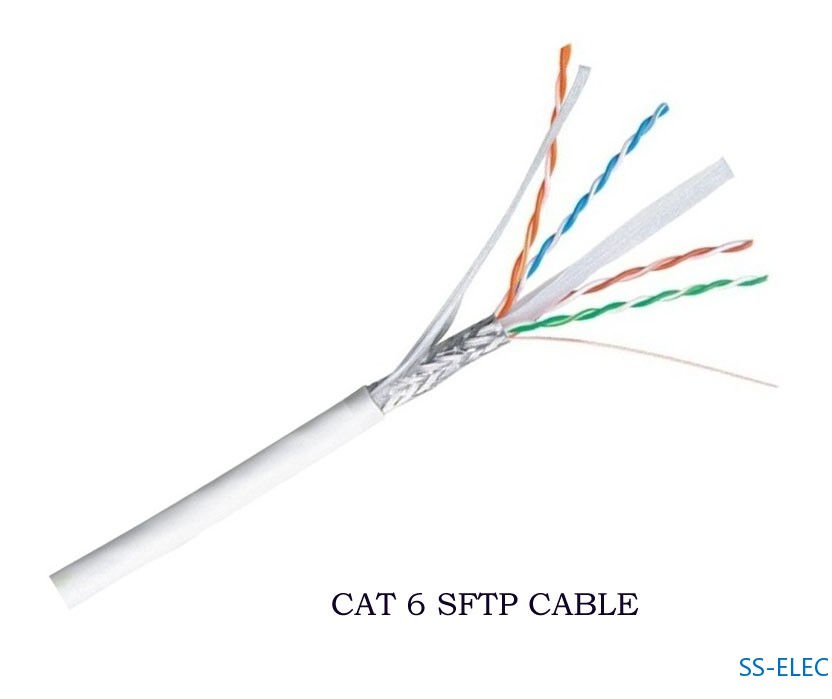

*标准：
•ISO/IEC 11801
•ANSI/TIA-568-C.2
•RoHS/CE compliant
*产品特性：
•性能种类=六类
•双绞线对数= 4
•导体直径(AWG) = 23
•导体：裸铜
•长度= 305米
•护套颜色=蓝色
•屏蔽类型= 总铝箔屏蔽+总织网屏蔽
· 包装：木盘
◎ 应用范围：
10Base-T4, 100Base-TX, 100Base-VG-ANYLAN, 155MbpsATM, 622 Mbps ATM, 1000Base-T, 10GBase-T
*性能参数：
|
FREQ |
NEXT(dB/100m) |
IL |
RL (dB) |
ACR (dB/100m) |
ELFEXT |
PSNEXT |
PSACR |
PSELFEXT |
|
1 |
77.3/87.0/74.3 |
2 |
20.0/21.5/20.0 |
75.2/85.0/72.2 |
68.8/80.0/67.8 |
75.3/85.0/72.3 |
73.2/83.0/70.2 |
65.8/70.0/64.8 |
|
4 |
68.3/77.0/65.3 |
3.8 |
23.0/24.7/23.0 |
64.4/73.0/61.4 |
56.8/66.0/55.8 |
66.3/74.0/63.3 |
62.5/71.0/59.5 |
53.8/63.0/52.8 |
|
8 |
63.8/72.0/60.8 |
5.3 |
24.5/25.5/24.5 |
58.4/67.0/55.4 |
50.7/61.0/49.7 |
61.8/70.0/58.8 |
56.5/65.0/53.5 |
47.7/58.0/46.7 |
|
10 |
62.3/70.0/59.3 |
6 |
25.0/28.0/25.0 |
56.3/64.0/53.3 |
48.8/57.0/47.8 |
60.3/68.0/57.3 |
54.3/62.0/51.3 |
45.8/54.0/44.8 |
|
16 |
59.2/66.0/56.2 |
7.6 |
25.0/28.0/25.0 |
51.6/59.0/48.6 |
44.7/52.0/43.7 |
57.2/64.0/54.2 |
49.6/57.0/46.6 |
41.7/49.0/40.7 |
|
20 |
57.8/65.0/54.8 |
8.5 |
25.0/28.0/25.0 |
49.3/57.0/46.3 |
42.8/50.0/41.8 |
55.8/63.0/52.8 |
47.3/55.0/44.3 |
39.8/47.0/38.8 |
|
25 |
56.3/63.0/53.3 |
9.5 |
24.3/27.0/24.3 |
46.8/5 4.0/43.8 |
40.8/47.0/39.8 |
54.3/61.0/51.3 |
44.8/52.0/41.8 |
37.8/44.0/36.8 |
|
31.25 |
54.9/61.0/51.9 |
10.7 |
23.6/26.5/23.6 |
44.1/51.0/41.1 |
38.9/45.0/37.9 |
52.9/59.0/49.9 |
42.1/49.0/39.1 |
35.9/42.0/34.9 |
|
62.5 |
50.4/57.0/47.4 |
15.4 |
21.5/24.6/21.5 |
34.9/42.0/31.9 |
32.9/38.0/31.9 |
48.4/55.0/45.4 |
32.9/40.0/29.9 |
29.9/35.0/28.9 |
|
100 |
47.3/53.0/44.3 |
19.8 |
20.1/23.7/20.1 |
27.4/33.0/24.4 |
28.8/34.0/27.8 |
45.3/51.0/42.3 |
25.4/31.0/22.4 |
25.8/31.0/24.8 |
|
200 |
42.8/48.0/39.8 |
29 |
18.0/22.2/18.0 |
13.6/21.0/10.6 |
22.8/27.0/21.8 |
40.8/46.0/37.8 |
11.6/19.0/8.6 |
19.8/24.0/18.8 |
|
250 |
41.3/46.0/38.3 |
32.8 |
17.3/21.6/17.3 |
8.3/14.0/5.3 |
20.8/24.0/19.8 |
39.3/44.0/36.3 |
6.3/12.0/3.3 |
17.8/21.0/16.8 |
|
300 |
37.1/45.0/37.1 |
36.4 |
16.8/20.7/16.8 |
0.5/11.0/0.5 |
18.3/23.0/18.3 |
35.1/43.0/35.1 |
0.111111111 |
15.3/20.0/15.3 |
|
350 |
36.1/44.0/36.1 |
39.8 |
16.3/20.3/16.3 |
0.151515152 |
16.9/21.0/16.9 |
34.1/42.0/34.1 |
0.217391304 |
13.9/18.0/13.9 |
