*标准:
•ISO/IEC 11801
•ANSI/TIA-568-C.2
•RoHS/CE compliant

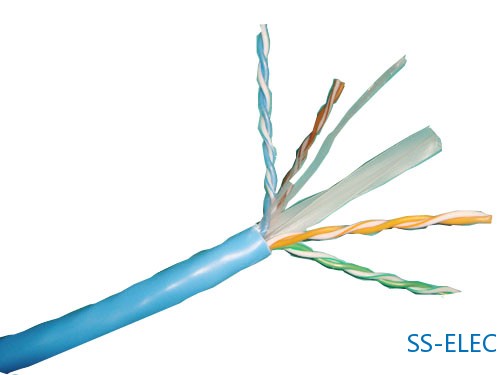

产品特性:
•性能种类= 六类
•双绞线对数= 4
•导体直径（AWG）= 23
•导体:裸铜
•长度= 305米
•护套颜色= 蓝色
· 工作温度 (°C [°F]) = -20 – +75 [-4 – +167]
包装特性:易拉纸箱
◎ 应用范围：
10Base-T4, 100Base-TX, 100Base-VG-ANYLAN, 155MbpsATM, 622 Mbps ATM, 1000Base-T, 10GBase-T
*性能参数：
|
CATEGORY 6 UTP 4-PAIR CABLE: |
|||||||
|
FREQUENCY |
RL |
ATTEN |
NEXT |
PSNEXT |
ELFEXT |
PSELFEXT |
DELAY |
|
(MHZ) |
(DB) |
(DB/100M) |
(DB/100M) |
(MHZ) |
(DB/100M) |
(DB/100M) |
(NS/100M) |
|
0.772 |
19.5 |
1.78 |
76.2 |
75.3 |
70.2 |
73.1 |
570 |
|
1 |
20 |
2 |
65.1 |
62.5 |
64.3 |
71.7 |
565 |
|
4 |
23 |
4 |
57.2 |
52.7 |
53.1 |
68.2 |
559 |
|
10 |
24.5 |
5.5 |
52.3 |
49.1 |
45.9 |
67.1 |
553 |
|
16 |
25 |
7.33 |
50.9 |
47.3 |
44.2 |
65.2 |
547 |
|
20 |
25 |
8 |
48.2 |
44.9 |
29.8 |
57.3 |
542 |
|
25 |
24.3 |
9.5 |
46.3 |
42.7 |
38.6 |
54.1 |
539 |
|
31.3 |
23.6 |
10.7 |
44.1 |
42.1 |
36.4 |
51.9 |
535 |
|
62.5 |
21.5 |
16.21 |
42.9 |
38.7 |
35.1 |
48.9 |
529 |
|
100 |
20.1 |
18.97 |
39.3 |
37.9 |
29.5 |
45.3 |
526 |
|
200 |
18.8 |
29.32 |
36.5 |
32.8 |
26.2 |
41 |
520 |
|
250 |
18 |
31.85 |
33.1 |
30.1 |
24.3 |
37.2 |
515 |
