*标准
•ISO/IEC 11801
•ANSI/TIA-568-C.2
•RoHS/CE compliant
产品特性
· 导体直径(AWG) = 24
· 护套颜色 = 白色
· 线缆结构 = 2 x 4
· 屏蔽类型=总屏蔽铝箔
包装特性:木轴或纸箱
应用范围：
10Base-T, 100Base-T4, 100Base-TX, 100Base-VG-ANYLAN, 155Mbps ATM, 622Mbps ATM, 1000Base-T
*测试数据：
|

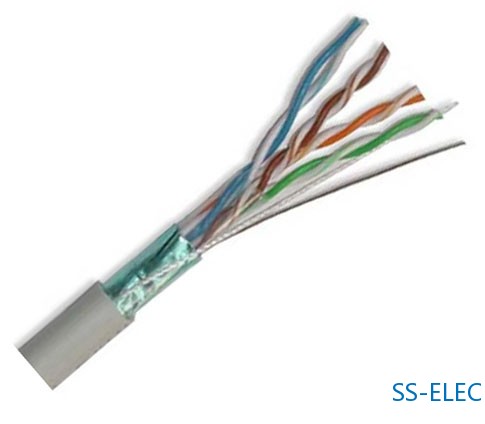

CATEGORY 5E FTP 4-PAIR CABLE Performance Parameters: |
||||||||
|
FREQUENCY |
RL |
SRL |
ATTEN |
NEXT |
PSNEXT |
ELFEXT |
PSELFEXT |
DELAY |
|
(MHZ) |
(DB) |
(DB) |
(DB/100M) |
(DB/100M) |
(MHZ) |
(DB/100M) |
(DB/100M) |
(NS/100M) |
|
0.772 |
16.7 |
25.2 |
2 |
68.9 |
67.5 |
68 |
69.2 |
570 |
|
1 |
18 |
28 |
2 |
66.2 |
64.9 |
65.4 |
65.4 |
560 |
|
4 |
19.8 |
28 |
4 |
57.9 |
57.2 |
53.7 |
53.7 |
548 |
|
8 |
20.8 |
27 |
5.2 |
56.2 |
55 |
49 |
50.3 |
545 |
|
10 |
22 |
25 |
6.2 |
51.9 |
48.3 |
44.7 |
44.7 |
544 |
|
16 |
22 |
26 |
7.9 |
49.5 |
46.3 |
42.5 |
42.5 |
542 |
|
20 |
22 |
26.2 |
8.6 |
47.2 |
44.5 |
40.2 |
39.8 |
540 |
|
25 |
20.2 |
26.5 |
9.7 |
45.9 |
42.9 |
37.3 |
37.3 |
539 |
|
31.3 |
19.6 |
25.8 |
16.5 |
41.2 |
38.2 |
30.9 |
30.9 |
536 |
|
62.5 |
18 |
25.7 |
21.2 |
38.4 |
34.8 |
25.6 |
25.6 |
535 |
|
100 |
17 |
22.4 |
18.7 |
32.8 |
28.6 |
22.6 |
23.7 |
533 |
