*标准:
•ISO/IEC 11801
•ANSI/TIA-568-C.2
•RoHS/CE compliant
*产品特性
•导体:裸铜
•长度= 305米
•护套=PE（黑色）
•绝缘=HDPE
*工作温度： (°C [°F]) = -20 – +60 [-4 – +140]
*包装：纸箱
*应用：
10Base-T, 100Base-T4, 100Base-TX, 100Base-VG-ANYLAN, 155Mbps ATM, 622Mbps ATM, 1000Base-T
*性能参数：
|

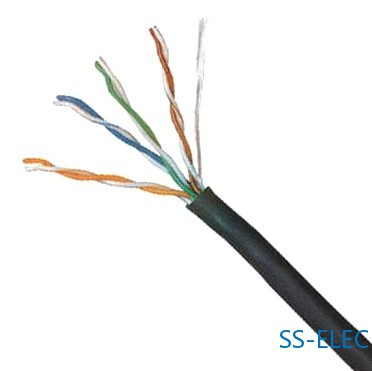

OUTDOOR CATEGORY 5E UTP 4-PAIR CABLE Performance Parameters: |
||||||||
|
FREQUENCY |
Impedance |
RL |
ATTEN |
NEXT |
PSNEXT |
ELFEXT |
PSELFEXT |
DELAY |
|
(MHZ) |
(Ω) |
(DB) |
(DB/100M) |
(DB/100M) |
(MHZ) |
(DB/100M) |
(DB/100M) |
(NS/100M) |
|
0.772 |
100±15 |
19.4 |
1.8 |
64.9 |
61.8 |
63.7 |
61.5 |
＜45.0 |
|
1 |
20.0 |
2.0 |
65.1 |
62.5 |
64.3 |
62.0 |
＜45.0 |
|
|
4 |
23.0 |
4.0 |
57.2 |
52.7 |
53.1 |
52.0 |
＜45.0 |
|
|
8 |
24.5 |
5.5 |
52.3 |
49.1 |
45.9 |
47.0 |
＜45.0 |
|
|
10 |
25.0 |
6.3 |
50.9 |
47.3 |
44.2 |
43.0 |
＜45.0 |
|
|
16 |
25.0 |
8.0 |
48.2 |
44.9 |
29.8 |
40.0 |
＜45.0 |
|
|
20 |
26.5 |
9.5 |
46.3 |
42.7 |
38.6 |
39.0 |
＜45.0 |
|
|
25 |
25.8 |
10.7 |
44.1 |
42.1 |
36.4 |
35.0 |
＜45.0 |
|
|
31.25 |
26.0 |
11.2 |
42.9 |
38.7 |
35.1 |
32.0 |
＜45.0 |
|
|
62.5 |
27.0 |
16.4 |
39.3 |
37.9 |
29.5 |
29.0 |
＜45.0 |
|
|
100 |
26.5 |
21.4 |
36.5 |
32.8 |
26.2 |
27.6 |
＜45.0 |
|
